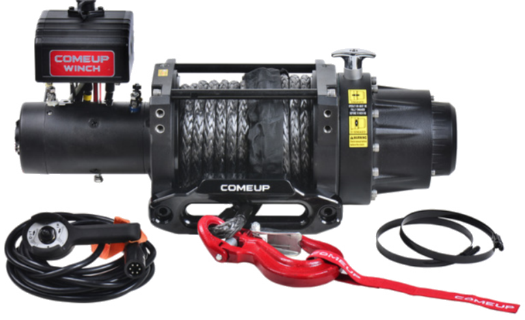

DESCRIPTION |
| |
|
| • |
12V DC severe duty winch
rated at 20,000 lbs. |
| • |
Heavy duty series wound
motor delivers superior torque output and faster
line speed. |
| • |
Motor equipped with a
protective thermal sensor |
| • |
Clockable ergonomic clutch
T-handle. |
| • |
Hardened steel, 3-stage
planetary gear set for durable and reliable
operation. |
| • |
Water-proof remote control
with thermometric LED indicator w/5 m cord. |
| • |
12 strand construction
synthetic rope coated to improve abrasion
resistance. |
| • |
Tough aluminum die cast
housings withstand strength of 2.0 x rated load of
winch. |
| • |
Patented mechanical cone
brake safely holds the full load |
| • |
Meets international
standards of CE Machinery Directive 2006/42/CE, CE
Electromagnetic Compatibility Directive 2004/108/EC,
and SAE J706 Surface Vehicle standard 2003-08 rev |
|
|
|
SPECIFICATIONS |
|
|
|
Rated Line Pull |
20,000 lb single line |
|
Motor |
5,220 w / 7.0 hp 12V series
wound |
|
Gear Ratio |
3-stage planetary 343:1 |
|
Clutch (freespooling) |
Rotating ring gear |
|
Brake (outside the drum) |
Automatic, full load CBS
(Cone Brake Structure) |
|
Winch Construction |
Aluminum die cast housings
with steel drum |
|
Drum Size |
3.5" x 8"L |
|
Rope Type |
Synthetic rope |
|
Rope Size |
9/16" x 55' |
|

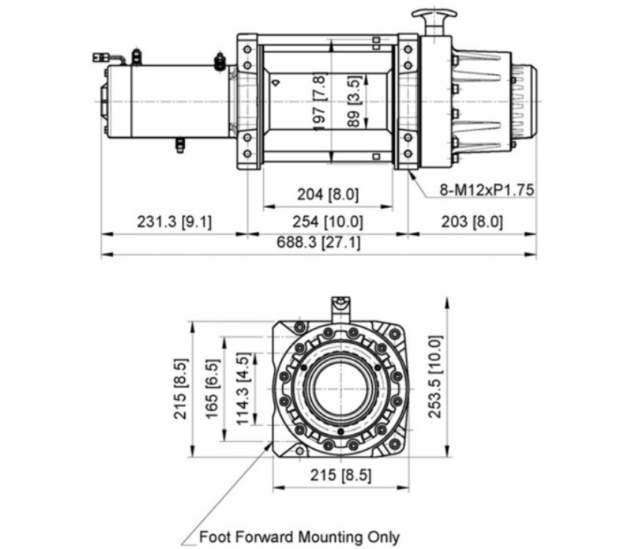

Mounting Bolt Pattern |
10" x 4.5" (254 x 114 mm),
10" x 6.5" (254 x 165 mm) |
|
Winch Weight |
109.3 lb |
|
Gross Weight |
140.2 lb |
|
Warranty |
Limited lifetime warranty
for mechanical components,
three (3) year warranty for
electrical components |
|
Box Dimensions |
29.1" x 10.6" x 19.5" |
|
|
|
