DESCRIPTION |
| |
|
| • |

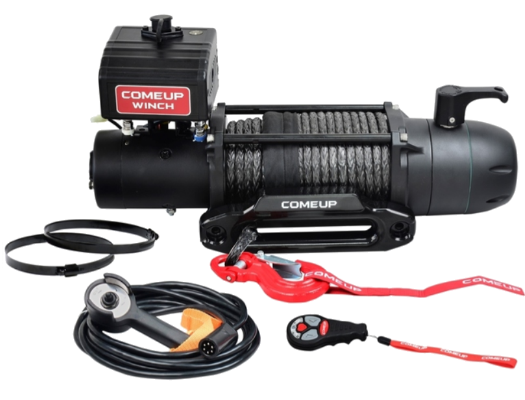

12V DC severe duty winch
rated at 9,500 lbs pulling meets or exceeds your
expectations.
|
| • |
The slim size plus strong
of motor housing and gearbox support rack are
suitable for equipped with any vehicles. |
| • |
Heavy duty series wound
motor delivers superior torque output and faster
line speed. A motor equipped with a thermal
protection switch |
| • |
New clutch lever kit is easy to engage and
disengaged. 16 equally positioned pin holes to
ensure seamless clutch transmission and make it
easily rotate by 22.5-degree increments.
|
| • |
Hardened steel, 3-stage planetary gear train for
efficient and reliable operation.
|
| • |
Cutout switch prevents the
vehicle battery from draining when no use. |
| • |
Both built-in digital
two-way wireless remote control and wired waterproof
remote control. |
| • |
A 12 strand construction
synthetic rope coated to improve abrasion and has no
water absorption. |
|
|
|
SPECIFICATIONS |
|
|
|
|
Rated Line Pull |
9,500 lbs (4,309 kg) single line |
|
Motor |
5.0 hp / 3,730 w 12V Series Wound |
|
Gear Ratio |
3-Stage Planetary 159:1 |
|
Clutch (freespooling) |
Rotating Ring Gear |
|
Brake (outside the drum) |
Automatic, full load CBS (Cone Brake
Structure) |
|
Winch Construction |
Aluminum Die Cast Housing with Steel Drum |
|
Drum Size |
2.5" x 9" (63.5 x 228 mm) |
|
Control |
Both built-in digital two way signal
wireless remote control and waterproof
remote with thermometric indicator LED w/17'
(5 m) cord |
|
Rope Type |
Synthetic rope |
|
Warranty |
Limited lifetime warranty for mechanical
components, three (3) year warranty for
electrical components |
|
Box Dimensions |
26.9" x 8.2" x 16.9" (682 x 209 x 430 mm ) |
|
